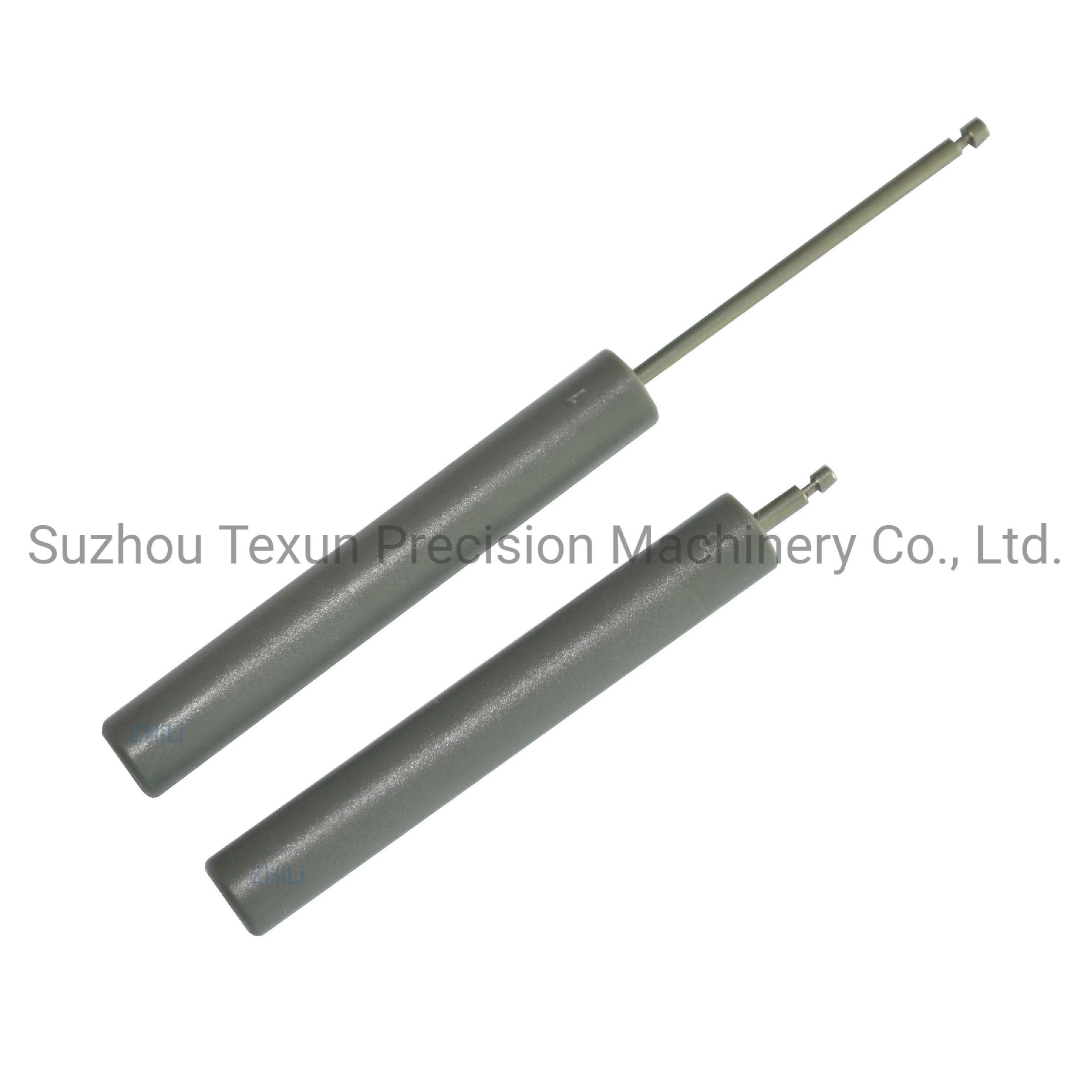

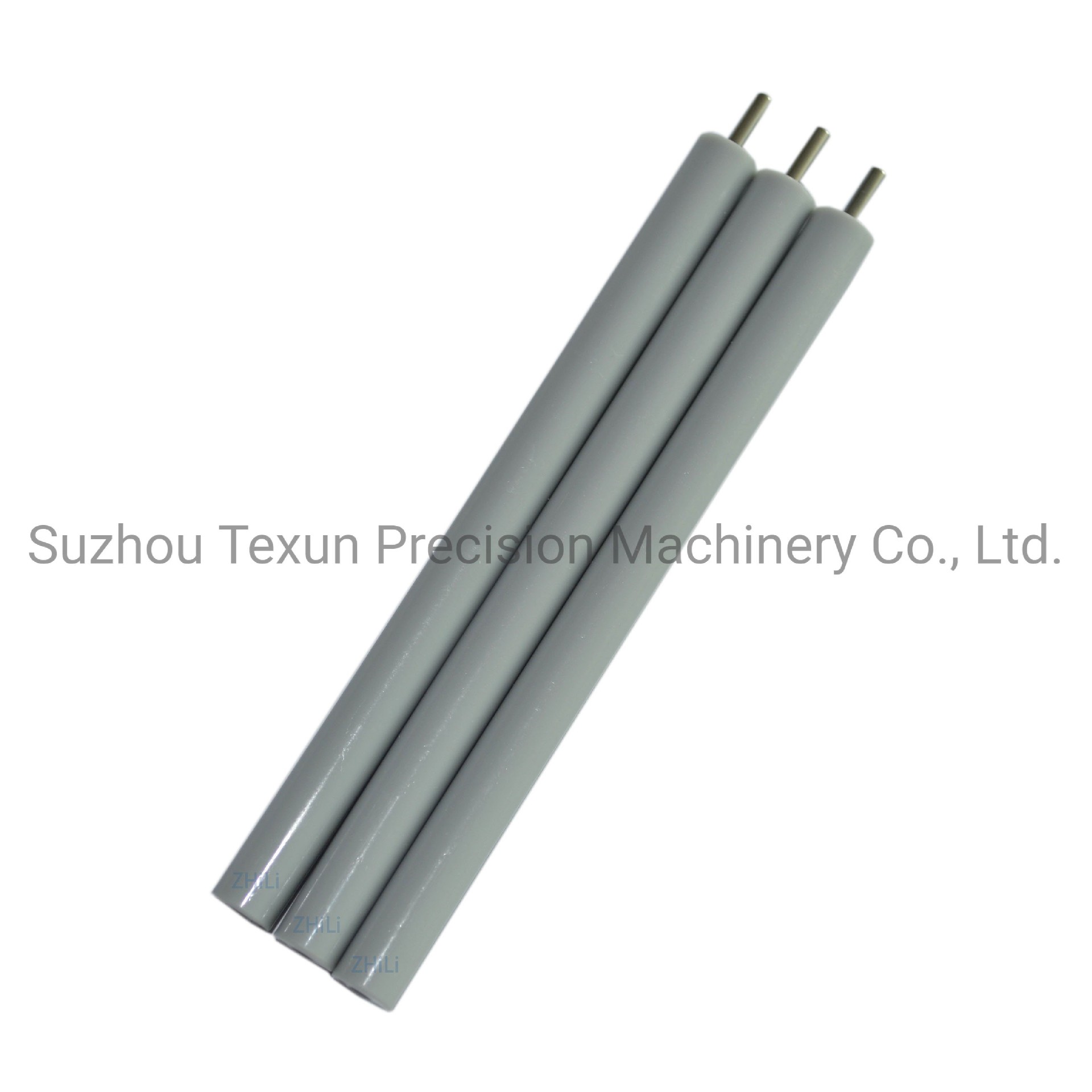

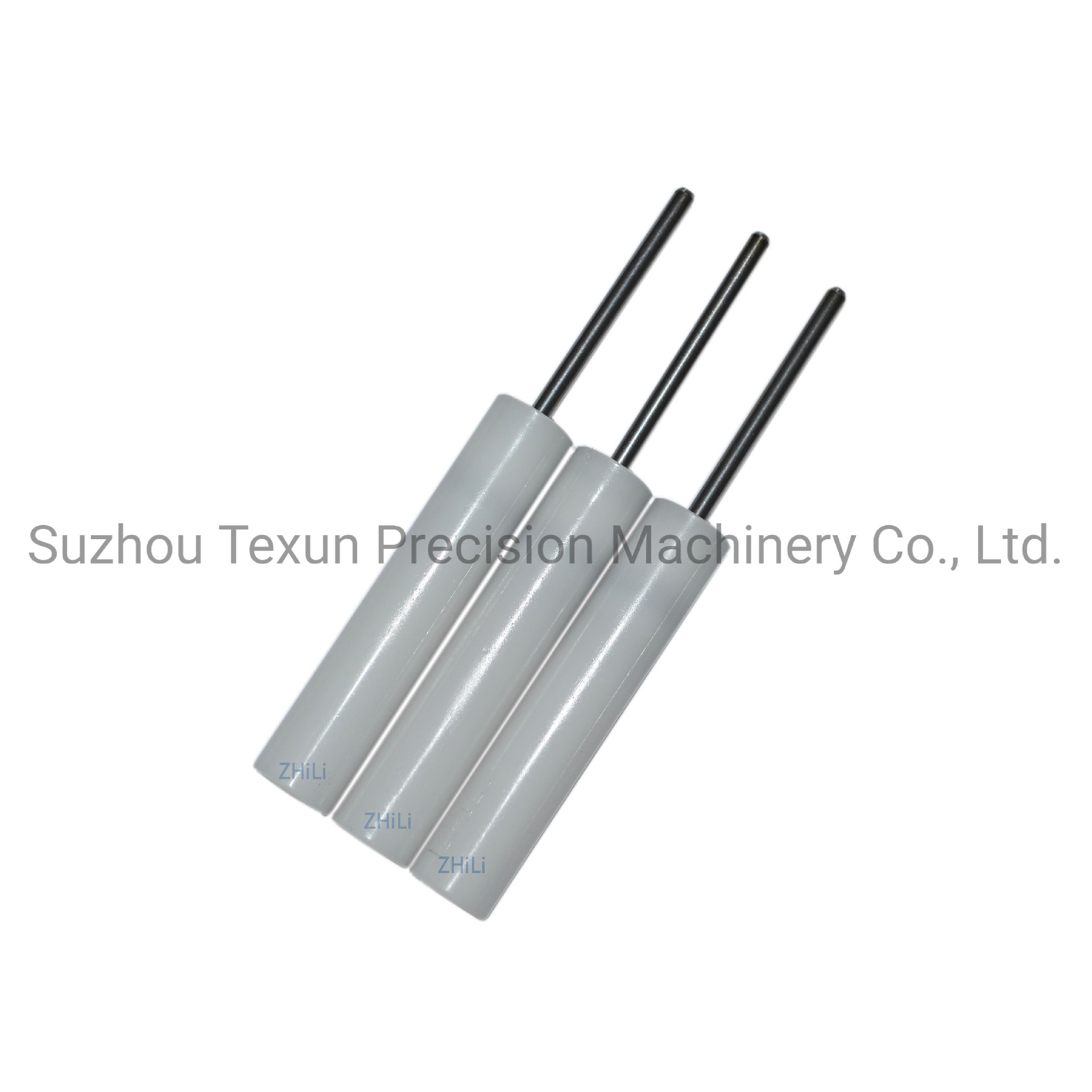

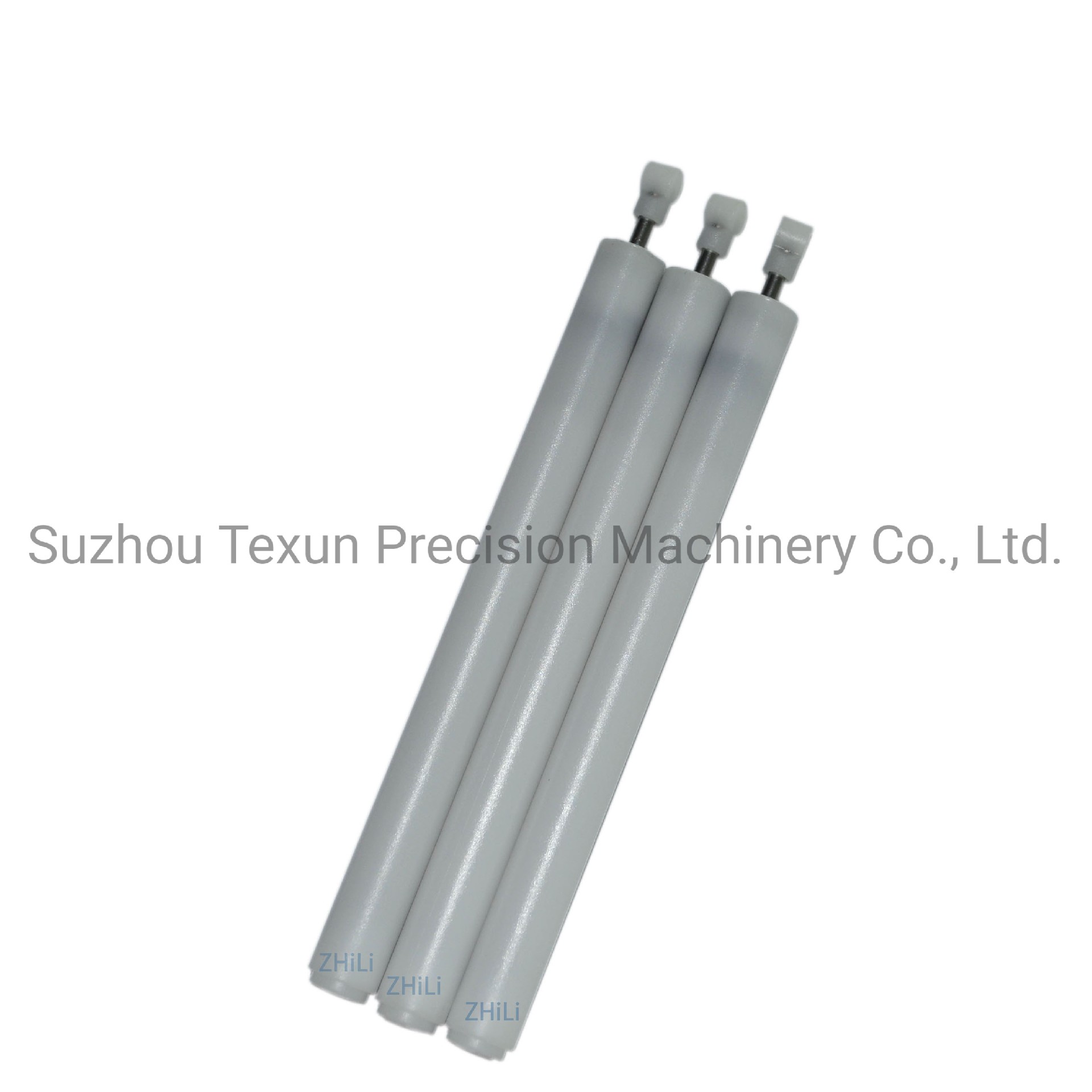

自闭式抽屉的塑料阻尼器

Damper product list 20210101No.Product modelCylinder LengthCylinderdiameterRoddiameterExtend StrokeForce(N)Remarks1MA10910J109m...

产品描述

Damper product list 20210101
No.Product modelCylinder LengthCylinderdiameterRod
diameter
Extend StrokeForce(N)Remarks
1MA10910J109mm10mm2.5mm75mmCustomized
2MA10910JL109mm10mm2.5mm75mmCustomized
3MA10010J100mm10mm2.5mm59mmCustomized
4MA11710J117mm10mm2.5mm75mmCustomized
5MA15810J158mm10mm2.5mm110mmCustomized
6MA15009J150mm9mm2.5mm110mmCustomized
7MA08285J82mm8.5mm2.5mm52mmCustomized
8MA08285JL82mm8.5mm2.5mm52mmCustomized
9MA08210J82mm10mm2.5mm52mmCustomized
10MA08309N83mm9mm1.8mm55mmCustomized
11MA09295J92mm9.5mm2.3mm57.5mmCustomizedSelf open damper
12MA03610J36mm10mm2.0mm14mmCustomizedSelf open damper
13MA07810N78mm10.4mm1.8mm48mmCustomizedUsed for refrigerate
14MA07885N78mm8.5mm2mm50mmCustomized
15MA07010J70mm10mm2.5mm45mmCustomized
16MA95510N95.5mm10.4mm1.8mm50.5Customized
17MA10010N100mm10mm2.5mm69mmCustomized
18MA08275J82mm7.5mm1.5mm50mmCustomizedUsed for refrigerate
19MA15012J150mm12mm3mm110mmCustomized
Noted:Raw material(J-POM,N-PPA),(L-Shaft as extral length)
